Utopia Flame Retardant Blackout Battery Operated Blinds 40 Colours
Per Linea Metre - This is the width of the fabric and the quantity is the number of metres rolled off the roll
3 - 5 Working Days Delivery
The Battery Operated Blinds can be easily rolled up or down to achieve the required level of shading. This Blackout Blinds keeps the cool air and the morning sunlight that awakes you from entering your room.
Fire Retardant
Suitable for Commercial Use.
Made to Measure
All Blinds are Made to Measure to your exact requirements.
10 Year Guarentee
Higest Quality Commercial Roller Blinds
The fabric has a matching acrylic foam blackout backing which makes this fabric PVC free and totally impermeable to light. It is fire retardant and has the same colour on each side of the fabric and comes with a lifetime warranty.
Roller blinds Components
The Utopia Battery Operated Blinds series is affordable and of the highest standard. It is available in several beautiful colorus to ensure a match for any decor.
Features:
- Flame Retardant
- Blackout blinds are most suitable for bedroom
- Eco-friendly fabric
- Easy installation
- High-quality fabric
- Battery stays charged for approx 6 months when used 2 times per day.
- Available in 40 beautiful colours to suit every home style and decor
Colour options
Further Fabrics Specification
Transmittance is the amount of light and heat transmitted beyond the fabric. The lower the amount, the greater the efficiency. Block/reflect is the amount of heat
and light that is blocked or reflected. The higher the amount, the greater the efficiency.
Absorption is the amount of heat and light absorbed in the fabric. The higher the amount, the lower the efficiency.
Ultraviolet protection illustrates how protective the fabric is against ultraviolet rays. The higher the amount, the greater the effectiveness.
Shading Co-efficiency is tested using a single 6mm glass glazing system with and without a blind to obtain solar heat gain measurements. The heat gained with a blind at the window is divided by the solar heat gained without a blind at the window, giving the Shading Co-Efficient. The lower the result the better the performance of the blind at blocking solar heat.

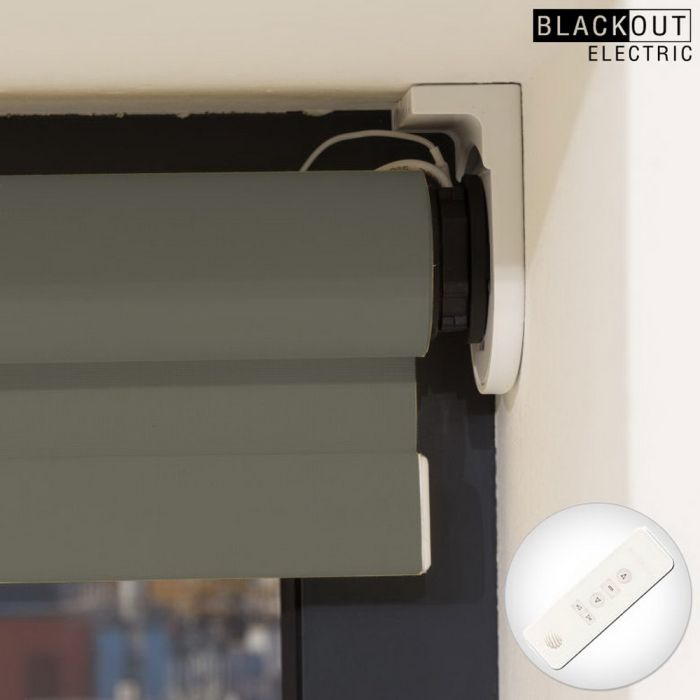

The Direct Fabrics electric roller blind comes with a low voltage battery motor as standard. The white metal brackets have plastic covers, for face or top fixing, on 40mm grooved aluminium barrel. The barrel houses a 7.4v DC motor with electronic limit stops and a slow stop/start feature. The motor is controlled by a remote switch (not supplied) and can be charged by either a mains charger (one supplied per order) or solar panel. The fabric is locked into a groove in the barrel, and it features a white plastic bottom bar as standard. The bottom bar is fabric covered at the front.
Charging
There are 2 options for the blinds. Integrates with a standard charger which is included. 1A charge will last approximately 6 months
Or you can use the solar panel that can be connected to the blind so it is constantly charged and ready for use.
Fitting Instructions
Remote Controls
The handheld remote controls are available in 1, 6, or 16 channels depending on how many remotes you wish to use.
If you are purchasing more than 1 roller blind then select no remote required on all of the blinds except one, then on the last one assign your remote controls to it.
Wall mounted switches are available in 1 or 2 channel options.
| Flame Retardant Certified Rating | BS5867 Part 2B |
|---|---|
| Fabric Style | Plains |
| Features | Flame Retardant, Blackout, Thermal |
| Operation | Electric |
| Delivery | 3 - 5 Working Days Delivery |
| Flame Retardant | Yes |
What are the different curtain heading options?
Will my room be totally blackout with a blackout fabric?
How to Measure For Curtains, Blinds and Tracks.
Pen and Paper
For recording your
measurements.
Helper
Someone to assist if your
windows are large .
Metal Tape Measure
As this will allow you to get a
rigid full length measurement.
Make sure your curtain tracks and poles are fitted in the position you want.
Choose the type of curtains that you would like and how you want to hang your curtains. See our heading styles guide
We recommend fitting your hardware first before measuring, this avoids any issues with not getting the perfect fit.
Measure your window using our main guide. Quick summary below. Remember wave, pinch, and designer headings require slightly different measurement
Measure in 3 places and take the shortest drop – Floors and ceilings can run out.
Double / Triple check your measurements
Choosing your Curtain Track Width
The width of the curtain track should extend past your window this allows for the curtains to stack back away from your window and allow light in.
Measure your recess and then add on 15cm on either side. For acoustics , we recommend further to fully cover the window and the surrounding area. In our test we added an additional 30cm to the width and also made the curtain floor length.
Wave curtains, for every 100cm of track the curtains will stack circa *18cm
Eyelet curtains, they will stack back circa 10cm per *70cm of track width
Pencil Pleat will stack approx 25% of the track width. eg. 210cm track will stack 52.5%
* all dependent on thickness of fabric
Selecting your Curtain Drop
Where to Measure From for Different Type of Curtains
|
Type of Curtains |
Fitted On |
Where to Measure from - to desired length |
|
Pencil Pleat Curtains |
Curtain Track |
Top of the Track - If using a extra wide track or designer track like silent gliss metropole, then measure from the underside of the track. |
|
Pencil Pleat Curtains |
Curtain Pole |
Measure from small ring at the bottom of eye under the ring, this is where your curtain clips into. |
|
Eyelet Curtains |
Curtain Pole – Only |
Top of the pole *we add on the upstand to our curtains, |
|
Pinch Pleat Curtains |
Curtain Track |
The underside of the track |
|
Wave Curtains |
Curtain Track Designer Pole |
The glider underneath the track. The curtain will sit under the track. |
|
Acoustic Curtains |
See Heading Style of Choice above |
Same but make sure wider than normal ideally 30cm past either side and 30 above. Also to the floor. |
How to Measure for Blinds going Inside the Recess
- Measure the exact width of the recess in three places; at the top of the recess, in the centre of the recess and near the bottom - then take the smallest size.
- Measure the exact drop of the recess in three places on the left hand side of the recess, in the centre of the recess and on the right hand side of the recess - then take the smallest size.
- We will take one cm off the finished width size you have given us, to allow for the blind to pull up and down easily.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the Fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
How to Measure Outside of the Recess
- Measure the recess in 3 places on the width and also 3 places on the drop. Take the widest measurement.
- Measure the width of the actual recess plus an additional amount – Usually from 7cm-15cm whatever you think looks appropriate. This is for overlap.
- Measure the exact drop of the recess. The blind would be fitted above the recess, so check the space above and add an amount on to the drop – usually from 7-15cm
- These sizes you have taken will be the size of the finished blind.
- Double check your measurements
- Cord Safety - Mounting Height - We ask for the mounting height of your blinds to allow for the cord to be 150cm off the ground. If mounting at 210cm This is what you enter in the fitting height box. We make a deduction to ensure the cord is 150cm from the floor. Thus the cord loop will be 60cm
Cubicle Tracks you have to measure with right angles from wall to wall where you want the track to go
Draw your room on a piece of paper with a sky view
Now measure from the wall to wall for straight tracks,
L Shape Tracks Measure to a point on the floor and mark with a piece of tape. Then for the other sides measure from the other wall to that point.
Always check for obstructions and fitting issues you may need to work around
